Flange Type Pipe Expansion Joint Marine Pipe Fittings

Place of Origin : China

Brand Name : Zhongyuan Marine Equipmen

Certification : CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Model Number : Standard or Customized

MOQ : 1 Unit

Price : Based on quotation

Packaging Details : Export standard pallet or customized packing

Delivery Time : Based on project requirements

Payment Terms : T/T, L/C

Supply Ability : Customized production based on project requirements

Standard : GB, EN

Material : SUS 304, 316L, Carbon Steel

Nominal Diameter : DN25 - DN2000mm

Nominal Pressure : 0.2Mpa - 10Mpa

Working Temperature : -20 to +400 °C

Application : Fire Line, Oil Line, Water Line, Gas Line, Smoke Line

Certificate : Class Society Type Approval, EC-MED Type Approval, ABS, DNV-GL, KR, NK, LR, RINA, BV, CCS, IRS

Contact Now

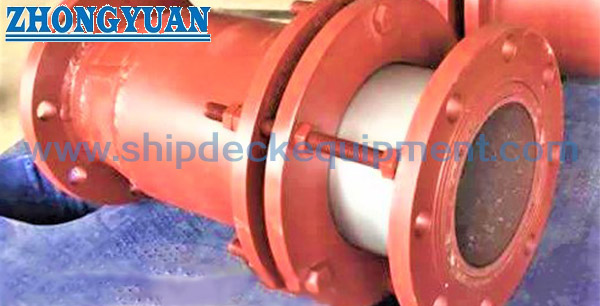

Flange Type Pipe Expansion Joint

Description:

Flange type expansion joint is for connection the pipe line to absorb expansion in the pipe line due to the temperature and ship movement etc.. It has different standard and various material and design type.

Main Technical Specification

  1. Standard: GB, EN
  2. Material: SUS 304, 316L, Carbon Steel
  3. Nominal Diameter: DN25 - DN2000mm
  4. Nominal Pressure: 0.2Mpa - 10Mpa
  5. Working Temperature: -20 to +400 °C
  6. Application: Fire Line, Oil Line, Water Line, Gas Line, Smoke Line
  7. With Fire Proof Certificate (Class Society Type Approval)
  8. Certificate: Class Society Type Approval, EC-MED Type Approval, ABS, DNV-GL, KR, NK, LR, RINA, BV, CCS, IRS

Flange Type Pipe Expansion Joint Marine Pipe FittingsFlange Type Pipe Expansion Joint Marine Pipe FittingsFlange Type Pipe Expansion Joint Marine Pipe FittingsFlange Type Pipe Expansion Joint Marine Pipe Fittings
